APPLICATIONS
- Designed to sew two and four hole buttons on light to medium material.
- Suitable for sewing snap fasteners, shank, flat and metal buttons; hooks and eyes and label tacking with use of suitable attachments. Thread severed by automatic clamp lift upon completion of sewing cycle.
- Has automatic scissor action thread trimmer with stationary and moving knife. Cutting action simultaneous with last stitch. Particularly suitable for use with heavy cotton and synthetic threads.
FEATURES
- Vibrating clamp
- Single pedal operation
- Automatic clamp lift after sewing cycle
- Stitch range - 8-16-32 parallel stitches - no cam changes
- Change from 2 hole to 4 hole operation by lever at operator's finger tips
- Attachments easily installed
- Interchangeable clamps for flat, shank, metal buttons, snap fasteners and label tacking
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 1500 |
| Stitch Type | 101 |
| Needle Bar Stroke | 1 59/64" (48mm) |
| Needle Used | 175 x 7 |
| Number of Stitches | 8-16-32 parallel stitches |
| Looper | B-372-213 |

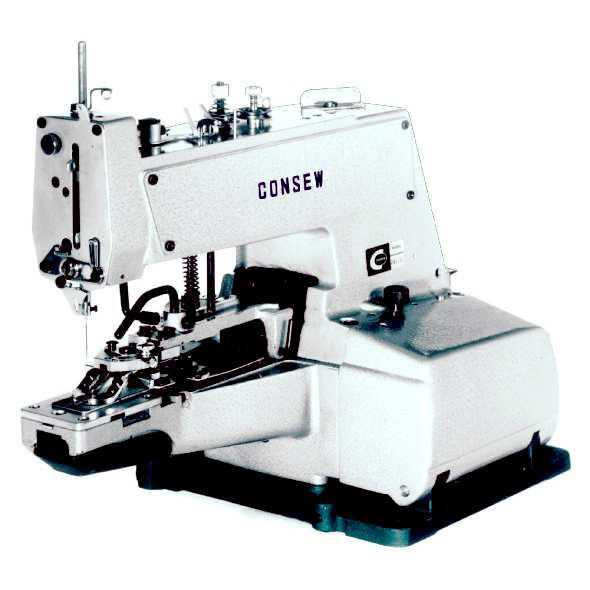

Consew Model 241-1K Button Industrial Sewer
- Type:
- Industrial
