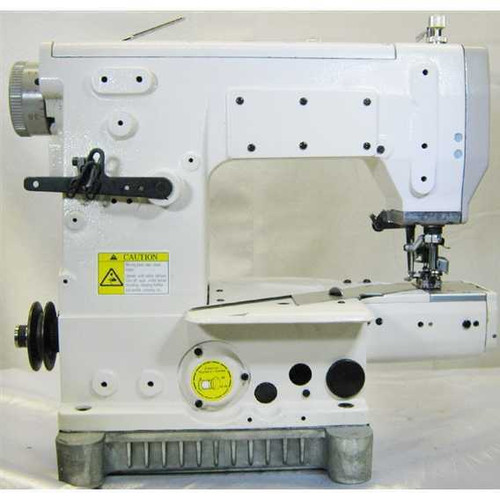

Consew Model 695EX Overlock / Coverstitch Sewing Machine

Call 800-229-8889 For More Information.
No reviews yet Write a Review
SKU:
cons-695EX
UPC:
708038739137
Condition:
New
Availability:
This item ships separately from other warehouses. Usually leaves the warehouse in 3 business days. Expedited shipping not available.

APPLICATIONS

  • For Mock Safety Stitch - suitable for seaming sides and joining front and side panels on ladies' swim suits, childrens' play pants; closing sides on ladies' panties; setting sleeves on ladies' uniform dresses and knitted sport shirts; sewing cuffs to sleeves and attaching pocket pieces to front and back on ladies' robes; setting body lining on men's raincoats, etc.  Equipped to handle medium to heavy weight materials and designed for sewing stretchable materials or fabrics which need elasticity in stitching.

FEATURES

  • Speed, Max. up to 7500 s.p.m. (depending on thread, material and application)
  • Fully automatic lubrication with visual flow controls
  • Lubricating oil continuously filtered by replaceable filter
  • External cooling of oil supply
  • Silicone based needle cooling and lubricating system
  • Differential feed with micrometric adjustment for shirring and stretching.  Ratio up to 4 to 1.
  • Push-button stitch regulator
  • Intermittent action possible
  • Standard type B-27 needles
  • Reduced noise and vibration when operating at high speeds

SPECIFICATIONS

Number of Needles2 (Double)
Feeding MechanismDifferential
WorkspaceStandard Workspace
Standard or Full FunctionStandard Functions
Speed, Max (S.P.M.)7500
Max Stitch Length3.8mm
Presser Foot Lift5.0mm
Differential Ratio1 : 0.7mm ~ 1 : 2
Two Needle
Needle Distances
5mm standard
Width of Overedging5, 6mm
Number of Threads4/5



Type:
Sewing
Type:
Sergers & Coverstitch
