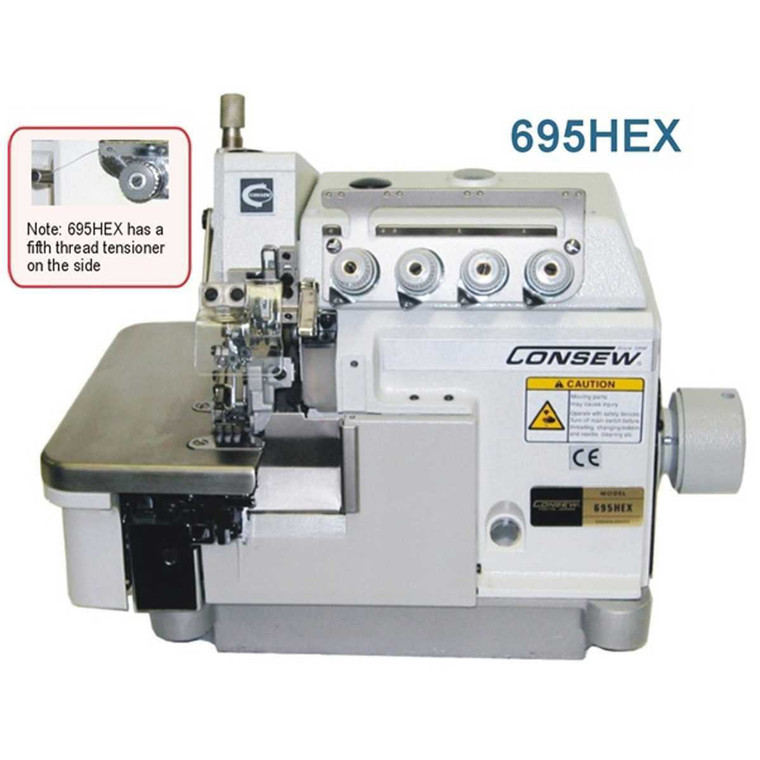

Consew Model 695HEX Overlock / Coverstitch Sewing Machine

Call 800-229-8889 For More Information.
No reviews yet Write a Review
SKU:
cons-695HEX
UPC:
708038739144
Condition:
New
Availability:
This item ships separately from other warehouses. Usually leaves the warehouse in 3 business days. Expedited shipping not available.

APPLICATIONS

  • True Safety Stitch - suitable for sewing products such as vinyl, 12-ply, 14 oz. denim jeans, mats, carpets, auto trim, upholstery, canvas, tents, etc.

FEATURES

  • Uses an extra high-throw upper looper, tractor foot and feed dog for sewing extra heavy-weight materials
  • Speed, Max. up to 6000 s.p.m.    (Speed depends on materials, threads & operation)
  • Fully automatic lubrication with visual flow controls
  • Lubricating oil continuously filtered by replaceable filter
  • External cooling of oil supply
  • Differential feed with micrometric adjustment for shirring and stretching.
  • Push-button stitch regulator
  • Intermittent action possible
  • Standard type 142X 5 needles
  • Tractor presser foot for sewing over seams
  • Extra high presser foot lift
  • Extra long stroke of upper looper
  • Large, aggressive feed dogs

SPECIFICATIONS

Number of Needles2 (Double)
Feeding MechanismDifferential
WorkspaceStandard Workspace
Standard or Full FunctionStandard Functions
Speed, Max (S.P.M.)6,000
Max Stitch Length5 mm
Presser Foot Lift7.0 mm
Two Needle
Needle Distances
5 mm standard
Width of Overedging5 - 7 mm
Number of Threads2, 3, 4, 5



Type:
Sewing
Type:
Sergers & Coverstitch
