APPLICATIONS
- For sewing light to heavy-weight materials.

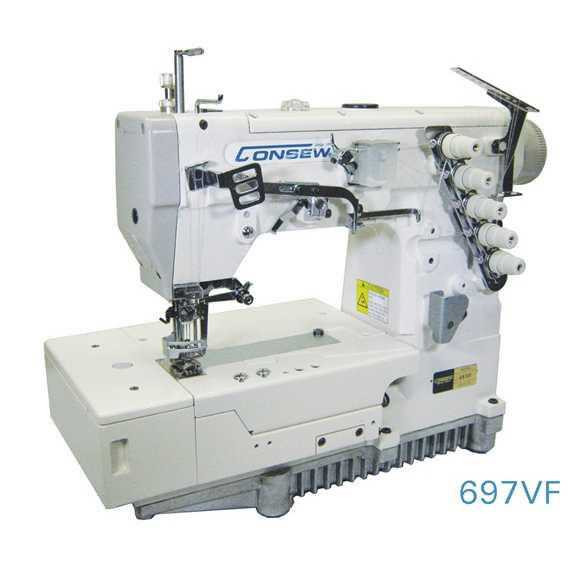

- Model 697VC – Cylinder-bed for general seaming
- Suitable for hemmimg, tape binding, elastic inserting, etc.
FEATURES
- Speed, Max. up to 6000 s.p.m.*
- Push-button stitch regulator
- External cooling of oil supply
- Fully automatic lubrication with visual flow controls
- Lubricating oil continuously filtered by replaceable filter
- Differential feed with micrometric adjustment for shirring and stretching. Ratio up to 4 to 1.
- Intermittent action possible
- Standard type UY128GAS needles
- Silicone based needle cooling and thread lubricating
- CONFIGURATIONS:
2 Needles, 2 Loopers, 4 Threads
3 Needles, 2 Loopers, 5 Threads - NEEDLES: Comes with 3-needle, 5.6 mm
(Optional Needle Gauges available)
2 Needles: 3.2, 4.0, 4.8, 5.6, 6.4 mm
3 Needles: 5.6, 6.4 mm - MORE OPTIONS
-UTA • Under thread trimming device (pneumatic)
-ST • Top cover thread trimming device
-UTM • Under thread trimming decice (electric)
-W • Thread wiper (electric)
-EC • Tape Cutter (electric)
SPECIFICATIONS
Number of Needles | 2, 3 |
Feeding Mechanism | Differential |
Workspace | Standard Workspace |
Standard or Full Function | Standard Functions |
Speed, Max (S.P.M.) | 6000 |
Max Stitch Length | 1.4 ~ 3.6mm |
Presser Foot Lift | 7.0mm |
Needle Bar Stroke | 31mm |
Needle Used | UY128GAS |
Looper | 2 |
Standard Distance Between Needles | 5.6mm 3-needle |
Differential Ratio | 1 : 0.3 ~ 1 : 2.9 |
Two Needle Needle Distances | Comes with 3-needle, 5.6 mm |
- Type:
- Sewing
- Type:
- Sergers & Coverstitch
