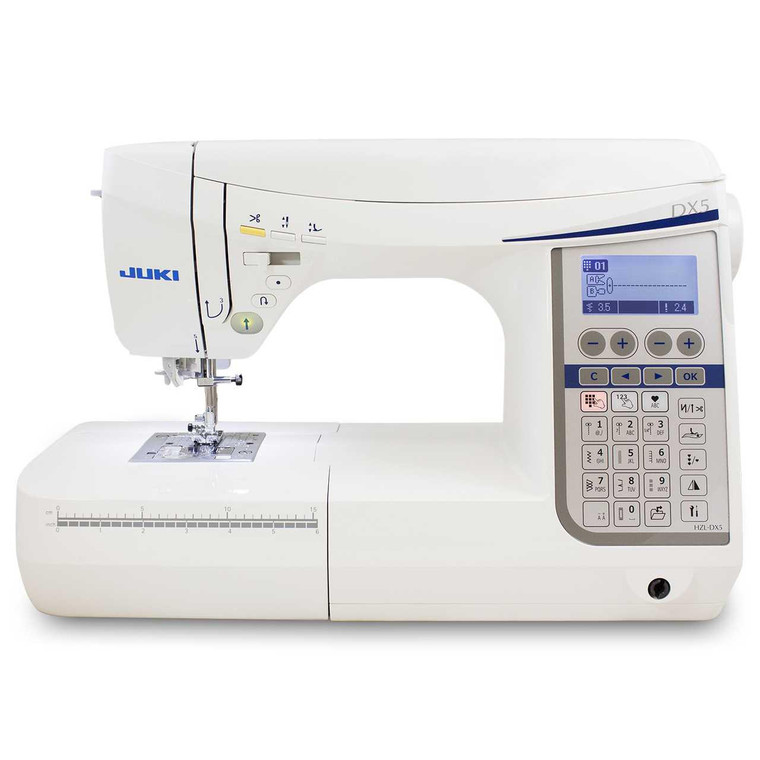

If you’re looking for a high-performance sewing machine that can also act as a combination quilting machine, then look no further than the HZL-DX5 model offered by well-known sewing machine brand Juki.
This machine makes use of industrial technology. Juki’s “box feed” system is brought to the Juki HZL-DX5 home machine to allow you to create precise, beautiful and high-quality stitching on all kinds of fabric.
The Juki HZL-DX5 is also great with thick fabrics and layers and sews even stitches thanks to the floating function for the presser foot. This action raises the foot ever so slightly so it can glide over fabric without pushing or pulling.
Buttonholes also become easier to create on the Juki HZL-DX5 thanks to Juki’s technology which marries both modern and industrial systems to create a one-step buttonholer using a sensor system. With this feature, you can create 16 different types of button holes for use on all kinds of fabrics. This machine can also be used for free-motion sewing, thanks to the ability to drop the feed dogs.
The Juki HZL-DX5 is incredibly easy to operate with quick-select buttons that include start/stop, lock stitch, reverse stitch, trim thread, up/down needle position, and auto lift for presser feet.
You can also control this machine with the foot pedal since you can assign a function to the heel side of the pedal. Selecting stitches and patterns is made easy by the touch panel. The machine contains 80 stitches, with 3 alphabet/number fonts. It sews with a max speed of 1050 spm.
The HZL-DX5 comes with 25 accessories and a Juki warranty of 5 yrs for mechanical defects, 2 yrs for electrical defects, and 90 days for material and/or workmanship defects.
The Juki HZL-DX5 - Professional Quality In A Home Sewing Machine!
Features:
|
|
Sew with the presser foot slightly floated - The height of the presser foot can be set in increments of 0.1 mm, allowing delicate adjustment according to the materials. |
|
|
|
Easily create and enjoy beautiful buttonholes with Juki's combination of industrial background and modern technology - Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole. |
|
|
|
Foot switch function - Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. |
|
|
|
Lock stitch - For the lock stitch at the start and the end of sewing, you can choose two kinds: "Reverse stitch" and "Lock stitch". If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern. |
|
|
|
Direct stitch pattern selection - Often-used sewing patterns such as straight lines, overcast stitches, and zigzag patterns can be quickly selected via direct buttons. You can also adjust the sensitivity of the touch panel. |
|
|
|
Straight stitch slide plate - Simply slide the front lever to switch to a single needle hole! Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Sew with confidence. When the single needle hole plate is set, only the straight stitch patterns can be selected. (Pictured: needle hole for straight stitches) |
Included Accessories:
- Standard presser foot (A)
- Zipper presser foot (B)
- Overcasting presser foot (C)
- Blind stitch presser foot (D)
- Buttonhole presser foot (E)
- Manual buttonhole presser foot (I)
- Walking foot (N)
- Patchwork presser foot (P)
- Quilt presser foot (Q)
- Bobbin (4)
- Needle set HA X 1 #11(1); #14(1); #16(1); for knit #11(1)
- Twin needle
- Quilt guide
- Auxiliary spool pin
- T-shape screwdriver
- Ripper / cleaning brush
- Spool cap (large)
- Spool cap (medium)
- Spool cap (small)
- Foot controller
- Knee-lifting lever
- Power cord
- Hard case
- Foot Controller
- Instruction manual
- Operation support DVD
Specifications:
- Dimensions – 445 W x 291 H x 210 D mm (Approx. 17.9” x 11.4” x 8.2”)
- Dimensions with case – 510 W x 305 H x 257 D mm (Approx. 20” x 12” x 10.1”)
- Arm size – 203 x 112mm (8.0" x 4.4")
- Weight - 10.3kg (21.6lbs)
- Maximum stitch speed – max. 1050 stitches per minute
Juki HZL-F and HZL-DX Series Specifications:
- Machine weight – 21 lbs.
- Machine Dimensions: 18” wide x 8.25” deep x 11.5” high
- Throat size – 8” (From needle to right) 4.5” high
- Bed Size – 12.25” wide x 8” deep
Manufacturer's Warranty:
- 5 Years Mechanical Defects
- 2 Years Electrical
- 90 Days Adjustments on Defects in Material or Workmanship
- Type:
- Sewing
- Type:
- Quilting
